calculate New · Gearbox Selection Tool
Not sure which gearbox fits your application?

Enter motor power, speed and reduction ratio — get required torque and factor of safety in seconds.

Try the Selection Tool arrow_forward
filter_list Filters:

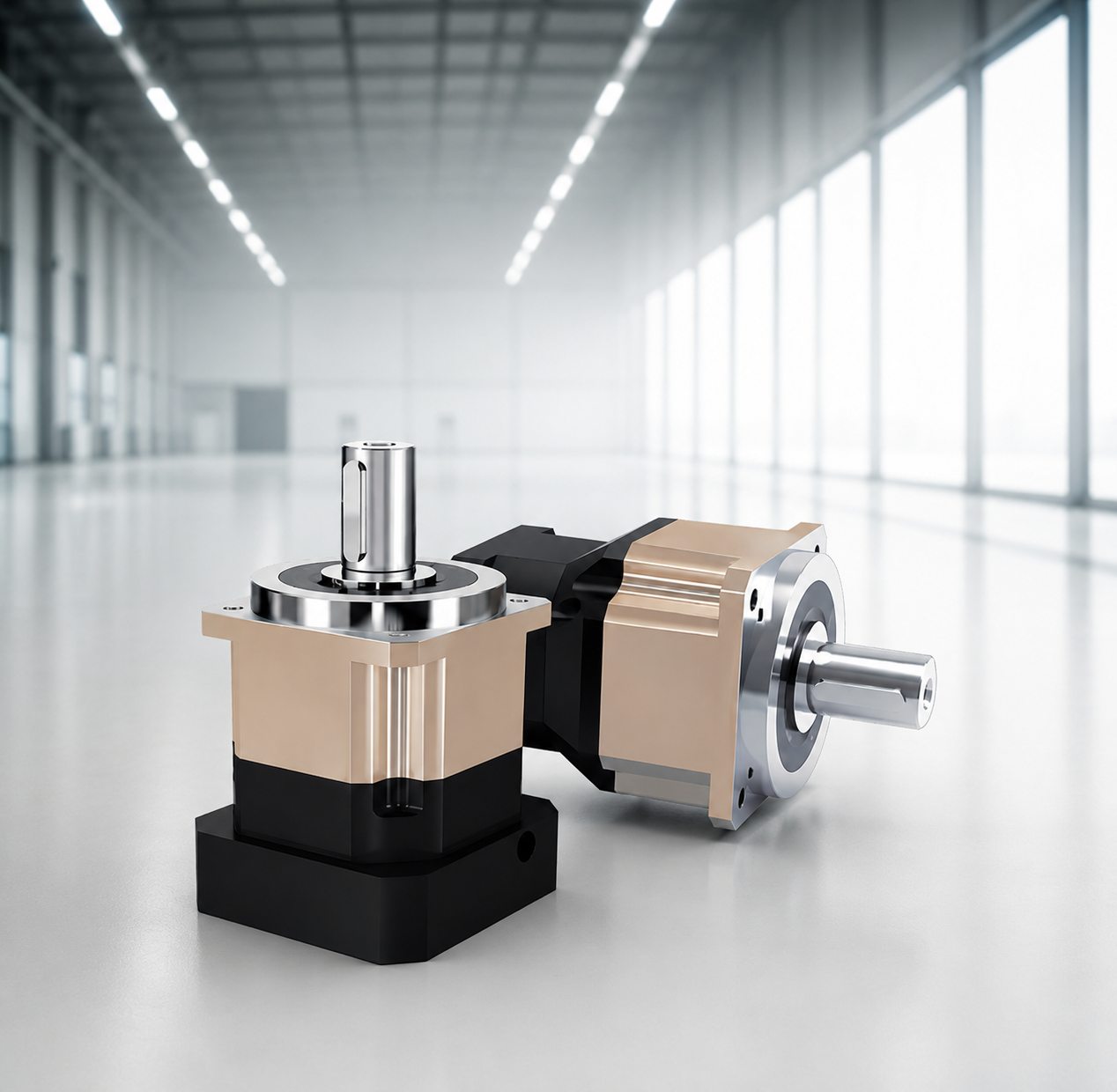

AB-Series AB-Series

Helical Planetary Reducer

High-precision helical planetary gear reducer with advanced gear geometry for maximum load distribution. Backlash from 3 to 8 arcmin.

Torque(Nm) 2000
Ratios 1:3 to 1:100
Backlash(Arc Min) P0=<1, P1=<3, P2=<5
Efficiency 95%
Protection IP65
ABR-Series ABR-Series

Inline Planetary Reducer

Compact inline planetary reducer designed for space-constrained applications. High torque density and smooth operation.

Torque(Nm) 2000
Ratios 1:3 to 1:200
Backlash P0=<3, P1=<5, P2=<7
Efficiency 92%
Protection IP65

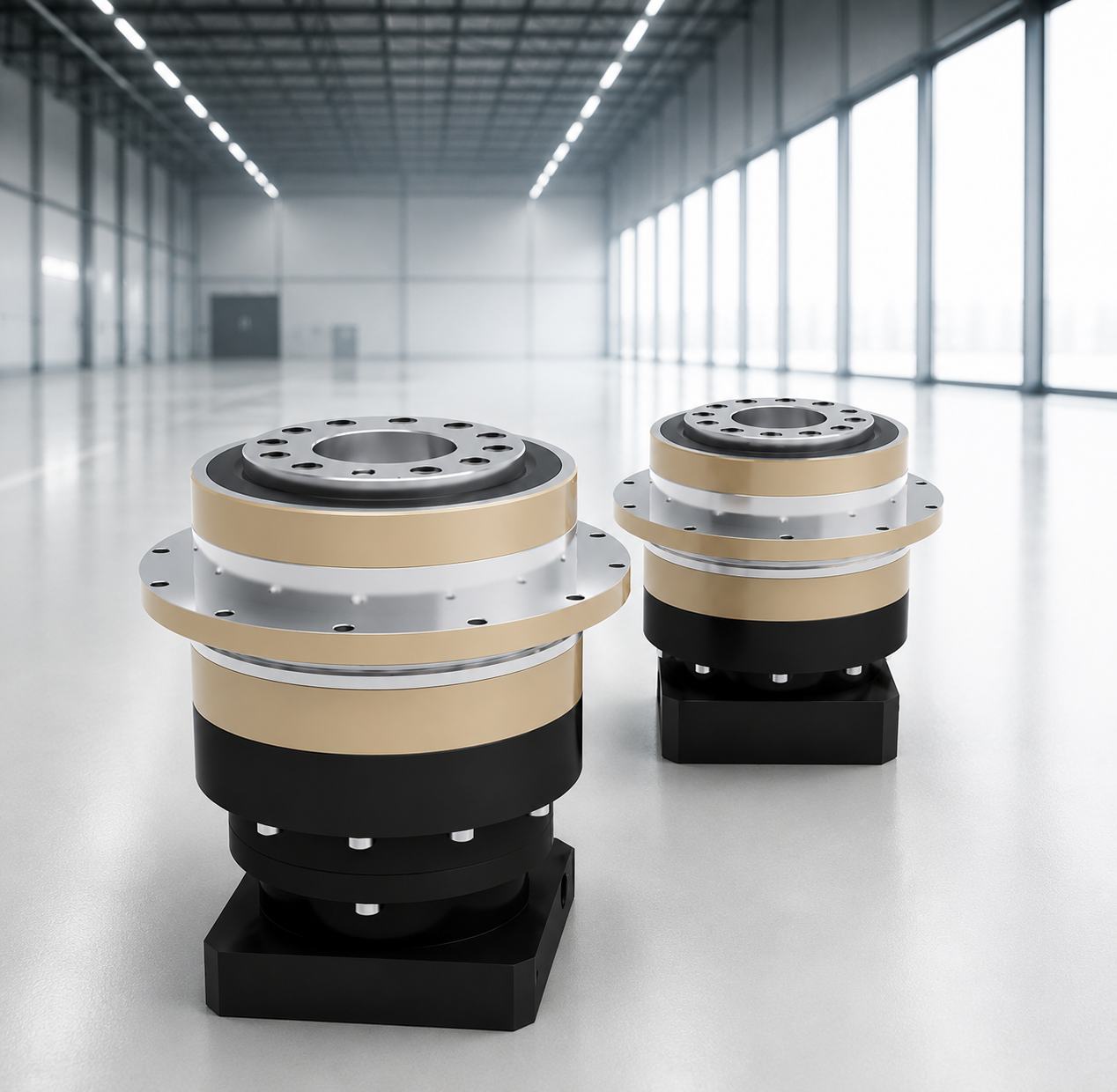

AD-Series AD-Series

Flange Type Planetary Reducer

Flange-mounted planetary reducer for direct integration with machinery. Robust design for demanding continuous operation.

Torque(Nm) 2000
Ratios 1:3 to 1:100
Backlash(Arc Min) P0 = <1 , P1 = <3, P2 = <5
Efficiency(%) 95%
Protection IP65

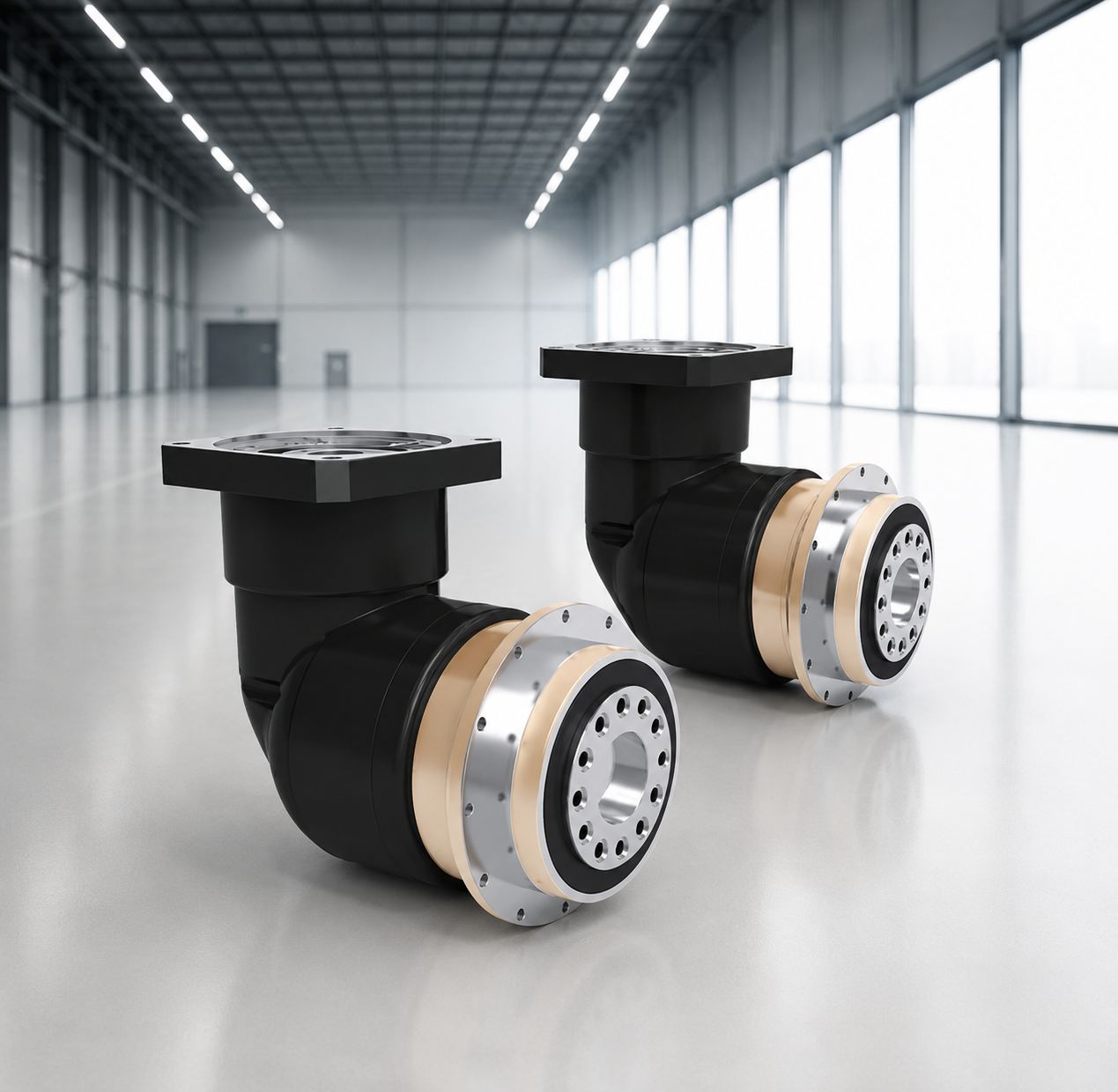

ADR-Series ADR-Series

Right Angle Planetary Reducer

Right-angle planetary reducer with bevel gear input. Space-saving L-shaped configuration for compact machine designs.

Configuration Right Angle (Bevel Input)
Torque(Nm) 2000
Ratios 1:3 to 1:200
Backlash P0 = <3 , P1 = <5, P2 = <7
Efficiency(%) 95%
Protection IP65

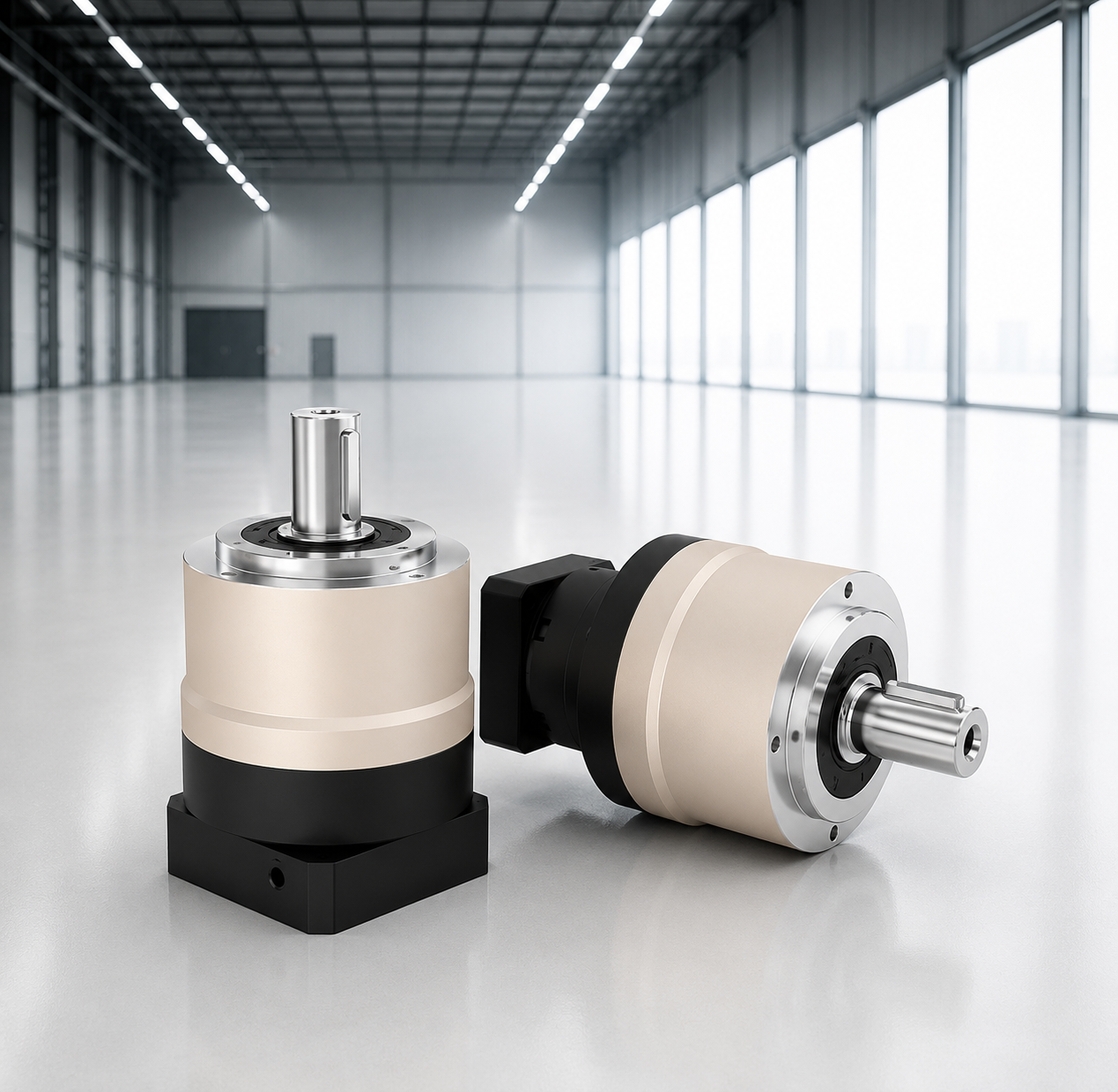

FE-Series FE-Series

Round Frame Planetary Reducer

Round frame planetary reducer with smooth cylindrical housing. Ideal for applications requiring compact radial mounting.

Torque(Nm) 2000
Ratios 1:3 to 1:100
Backlash(Arc Min) P0 = <1 , P1 = <3, P2 = <5
Efficiency(%) 95%
Protection IP65
Frame Type Round (Cylindrical)

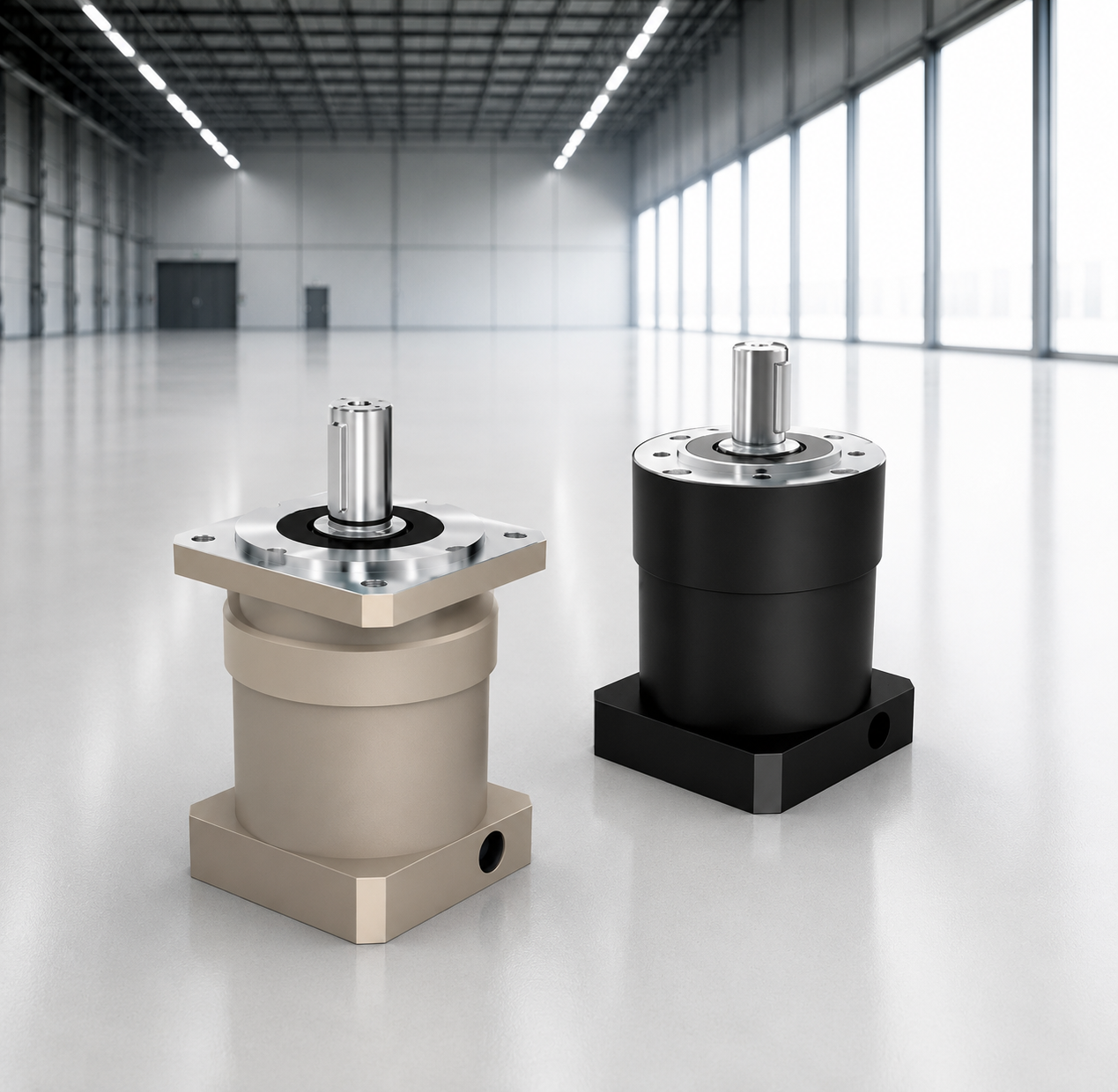

FG-Series FG-Series

High Precision Planetary Reducer

Ultra-high precision planetary reducer with minimized backlash for critical positioning applications in robotics and CNC.

Torque(Nm) 423
Ratios 1:3 to 1:100
Backlash(Arc Min) <12
Efficiency(%) 95%
Protection IP65

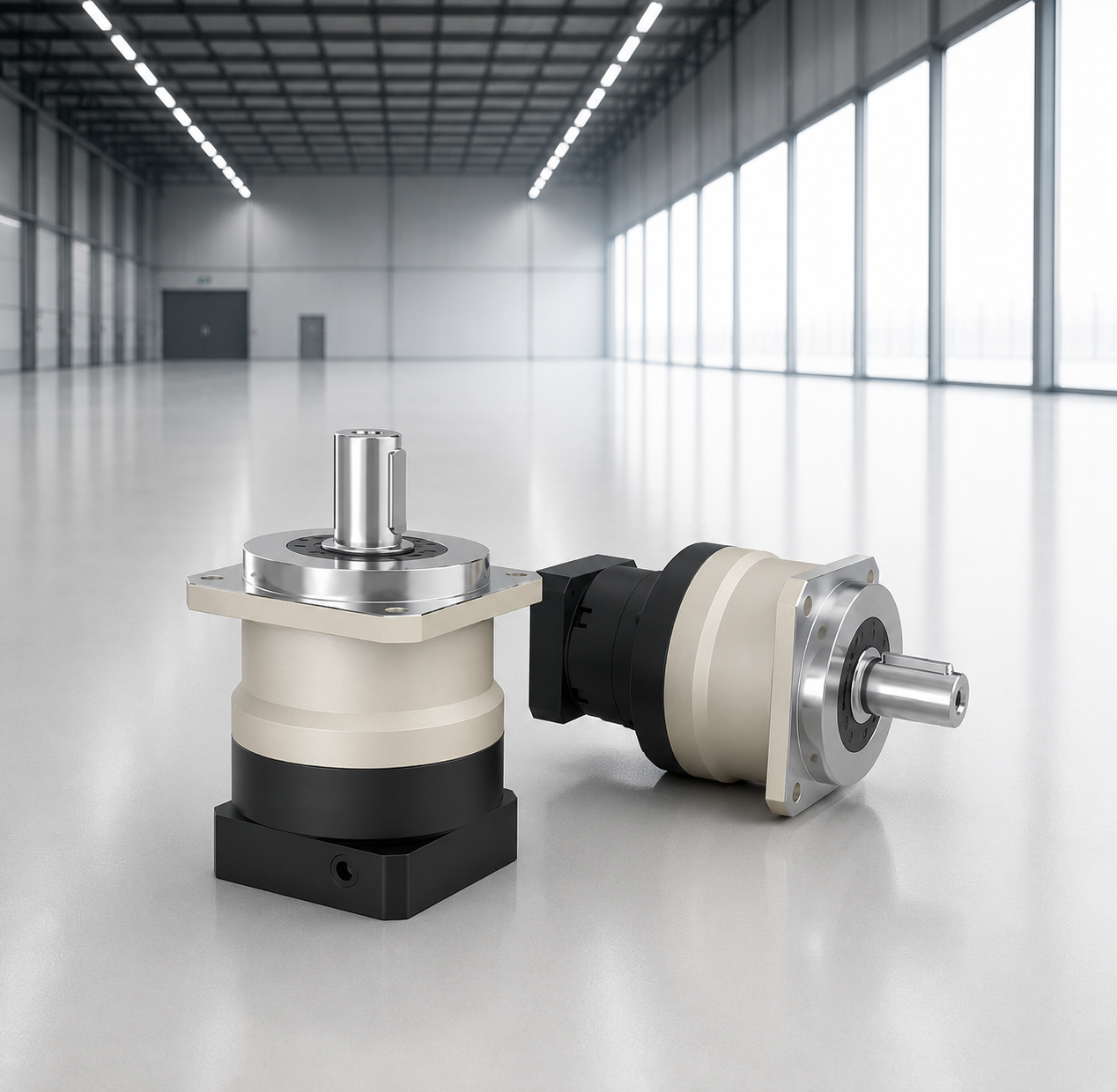

FB-Series FB-Series

Epicyclic Gear Reducer

Square frame epicyclic gear reducer offering high reduction ratios in a compact package. Suitable for heavy load applications.

Torque(Nm) 2000
Ratios 1:3 to 1:100
Backlash(Arc Min) P0 = <1 , P1 = <3, P2 = <5
Efficiency(%) 95%
Protection IP65
Frame Type Square

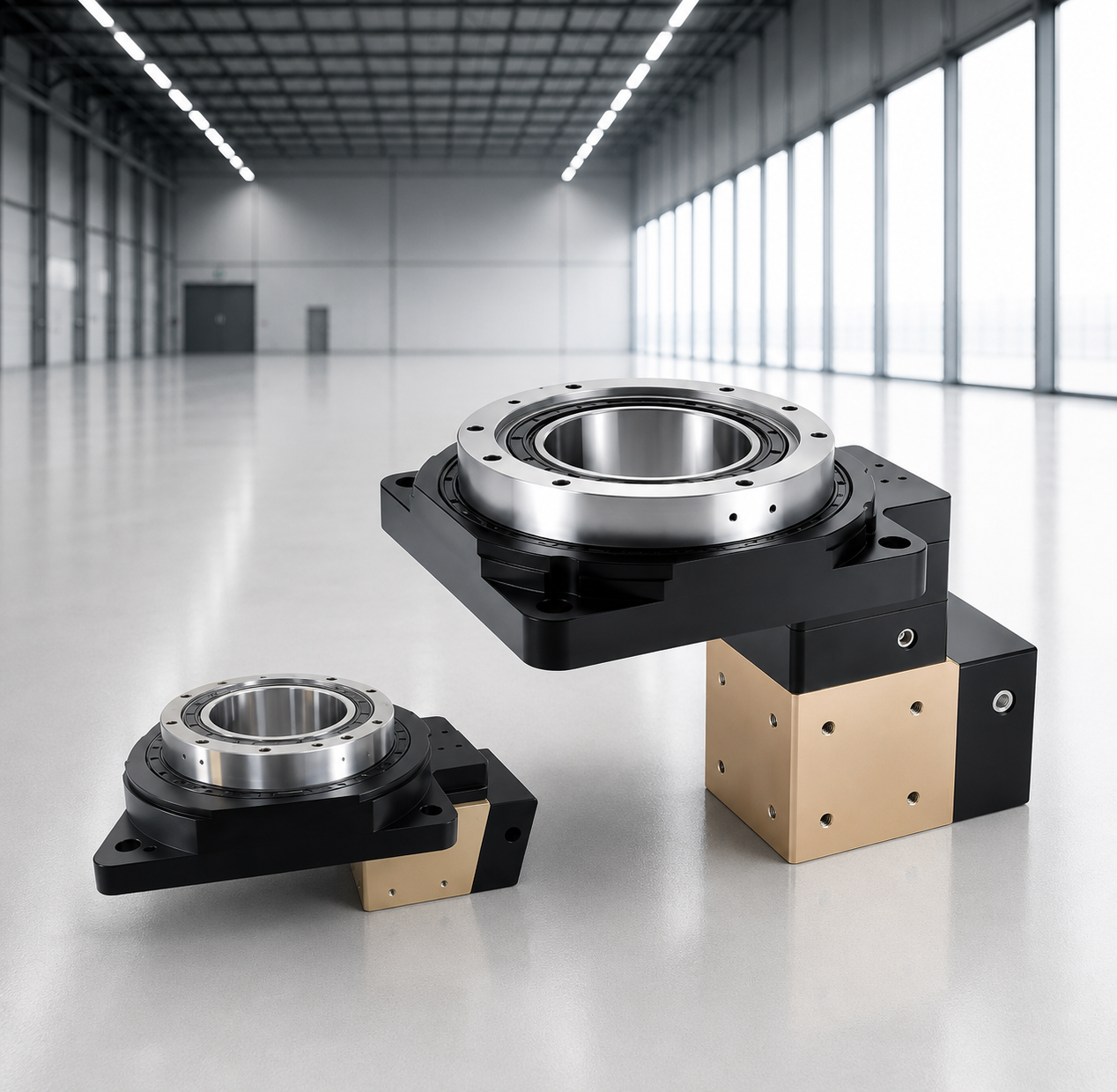

DRN-Series DRN-Series

Hollow Rotating Platform

High-precision hollow rotary platform that replaces DD motors and cam dividers. Large through-hole for easy wiring and piping.

Torque(Nm) 456
Ratios 01:10
Backlash(Arc Min) <1
Protection IP65
Efficiency(%) 85%
Bearing Cross Roller Bearing

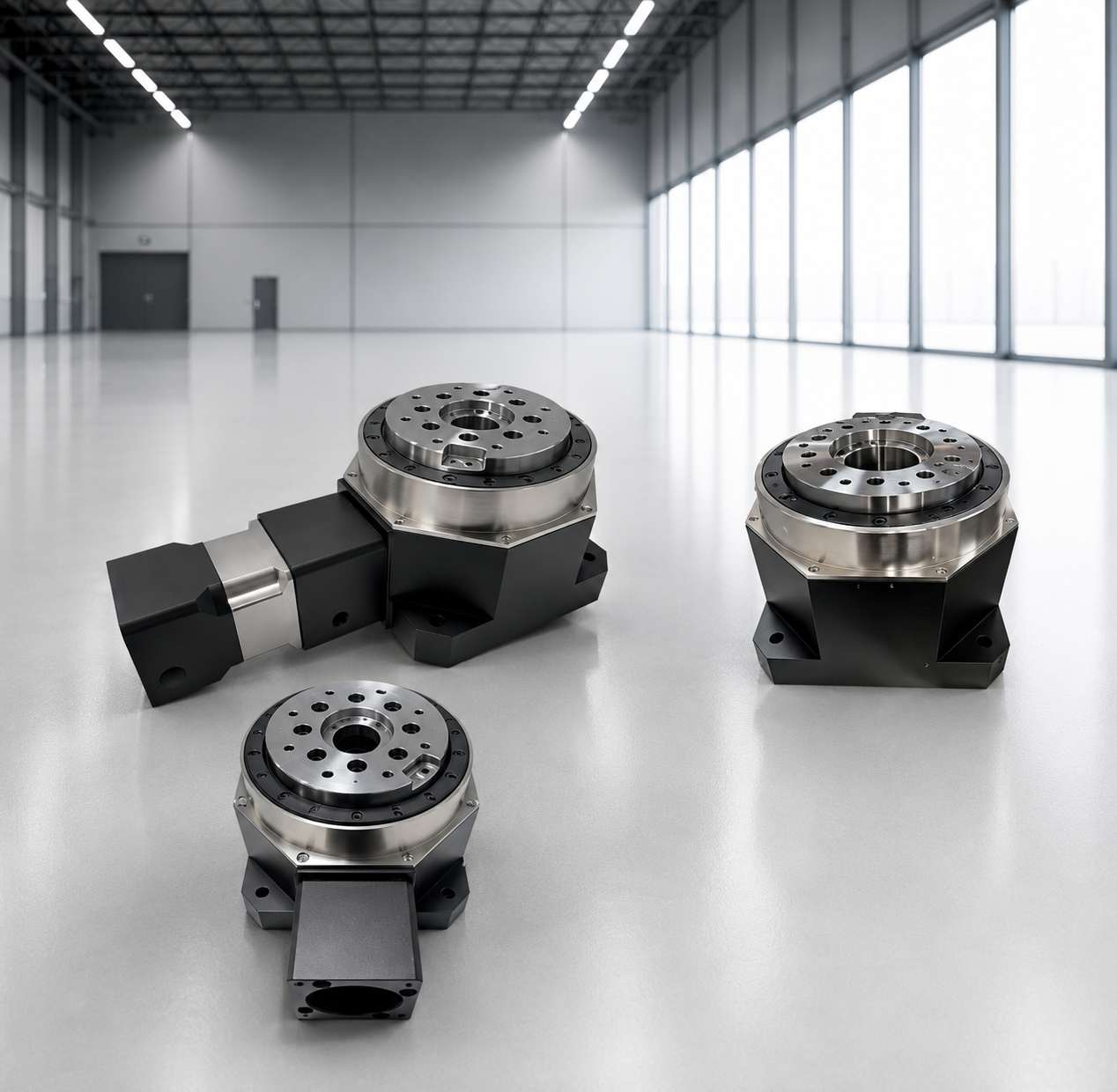

ZMD-Series ZMD-Series

Heavy-Duty Hollow Rotating Platform

Heavy-duty hollow rotary platform designed for large inertia loads and rapid positioning. High rigidity and load capacity.

Torque(Nm) 2430
Ratios 1:9 to 1:300
Backlash(Arc Min) <1
Efficiency(%) 90%
Protection IP65

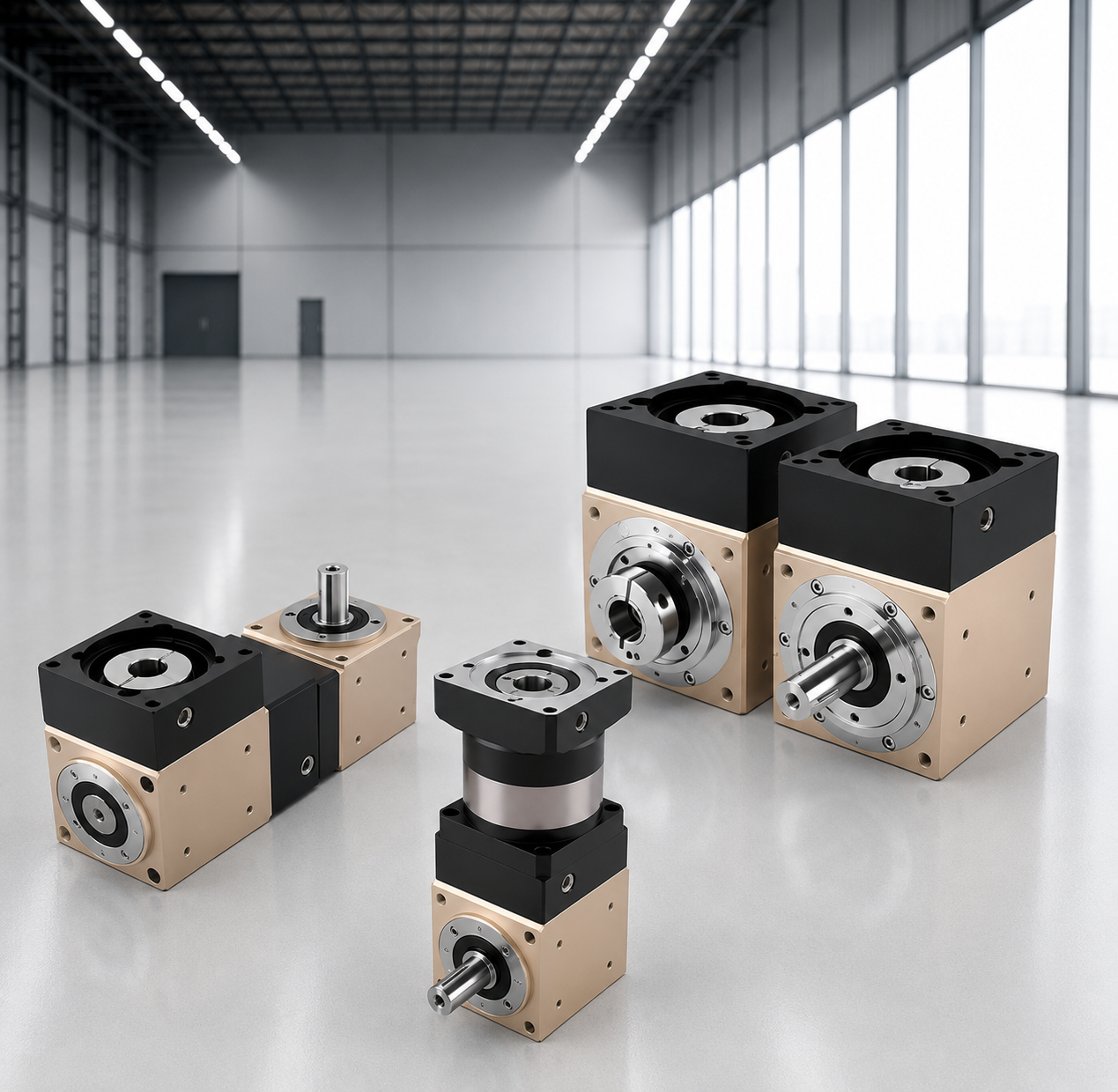

Z-Series Z-Series

Precision Right Angle Reducer

Compact precision right-angle reducer with high torsional rigidity. Space-saving design without compromising performance.

Torque(Nm) 120
Ratios 1:2 to 1:50
Protection IP54 (IP65 Optional)
Backlash(Arc Min) P0 = <1, P1= <3
Efficiency 95%

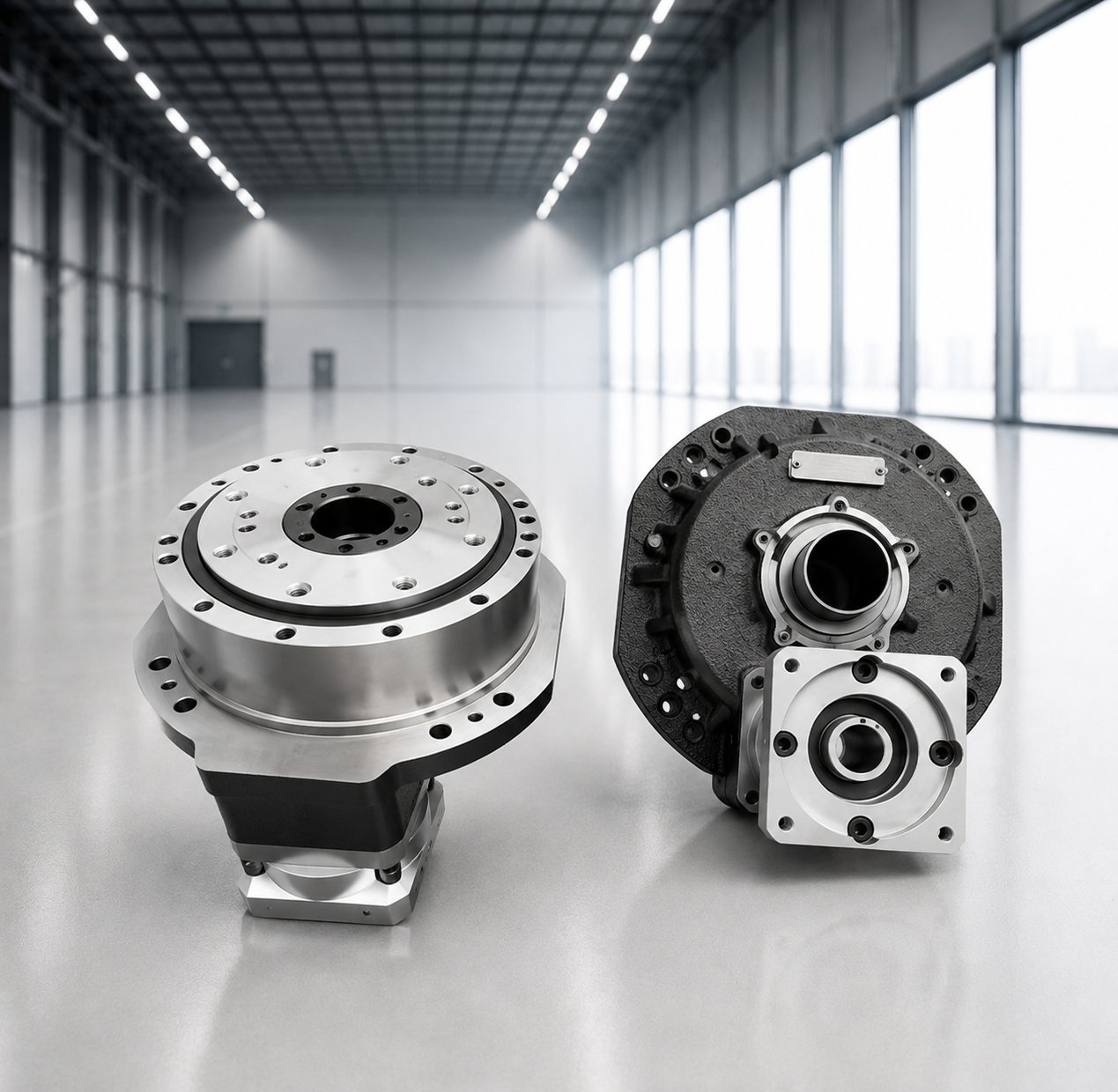

ERV-C-Series ERV-C-Series

Cycloidal Pinwheel RV Reducer

High-precision cycloidal pinwheel RV reducer with low backlash and high torsional stiffness. Ideal for robotic arm joints.

Torque(Nm) 4900
Ratios Up to 1:281
Backlash(Arc Min) <1
Efficiency(%) 80%
Protection IP43

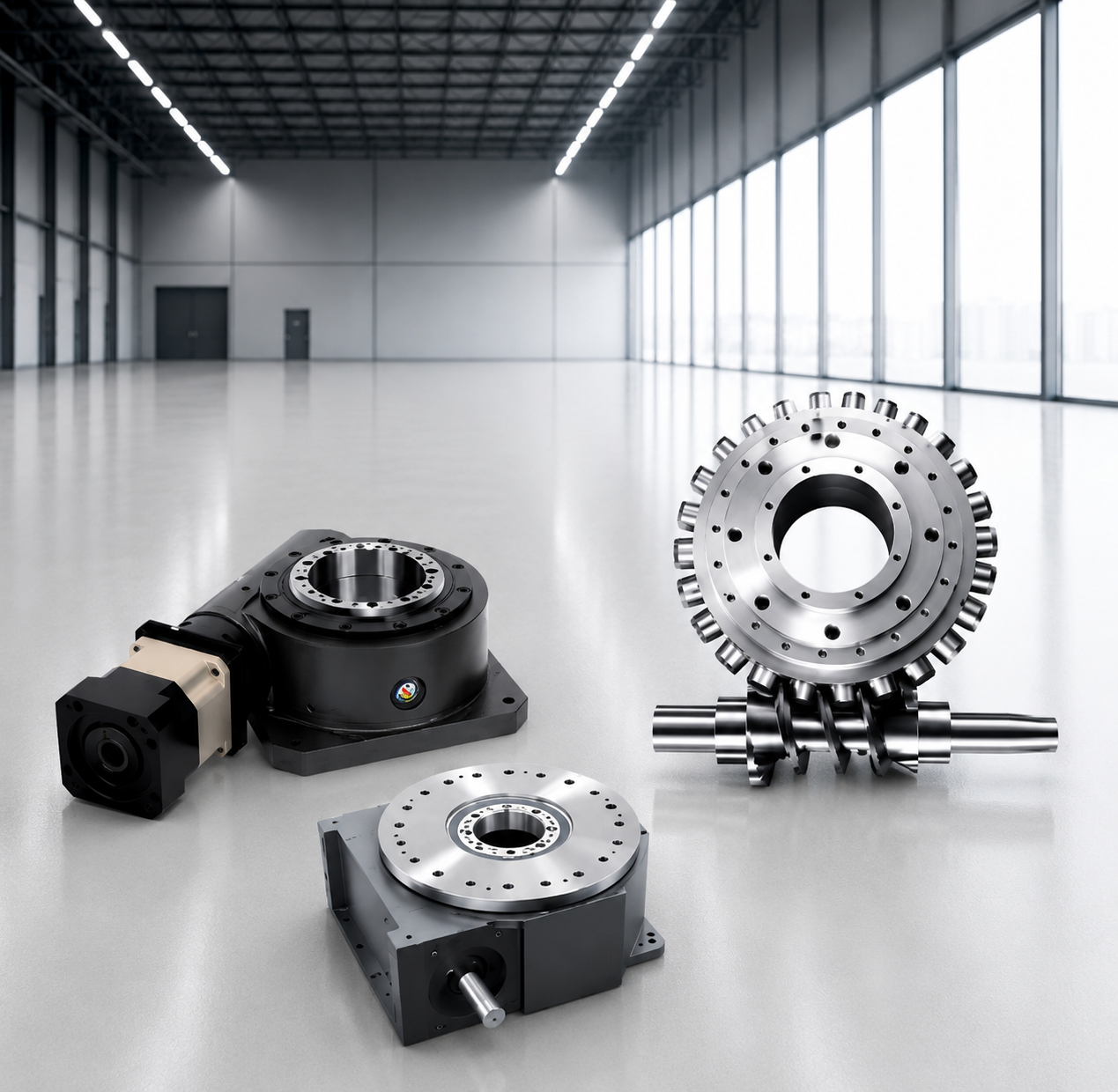

ZDW-Series ZDW-Series

CAM Roller Hollow Rotary Platform

Servo CAM-driven hollow rotary platform with cross roller bearing support. Maintenance-free lubrication design for long life.

Torque(Nm) 30000
Ratios 01:20
Backlash(Arc Min) <1
Efficiency(%) 60%
Protection IP40

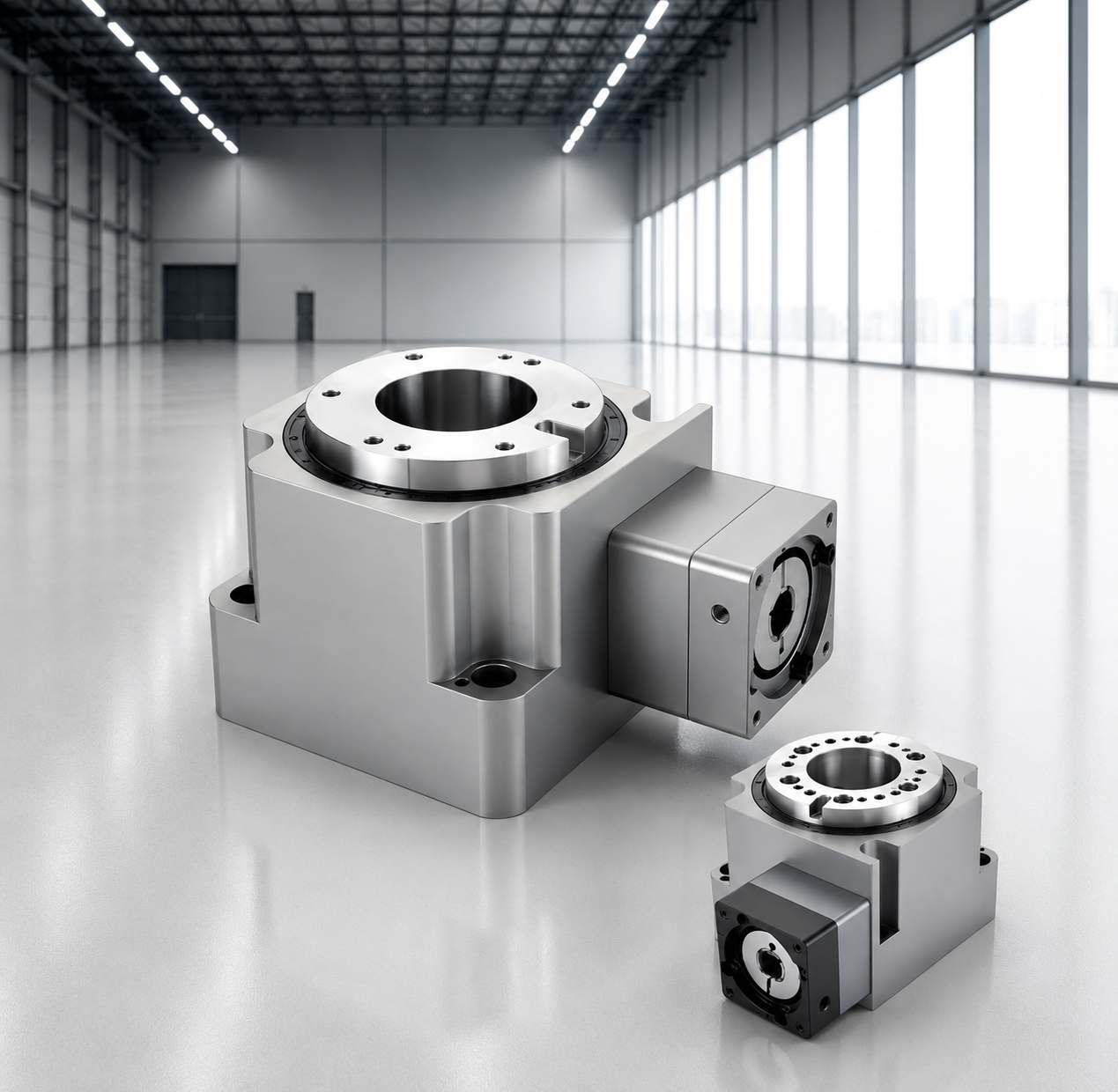

ZRG-Series ZRG-Series

Hypotooth Hollow Rotating Platform

High-precision hollow rotary platform with hypotooth gear design. High efficiency and smooth rotation for demanding applications.

Accuracy ≤30 arcsec
Efficiency up to 96%
Protection IP65
Bearing Cross / Tapered Roller
Lubrication Synthetic Grease

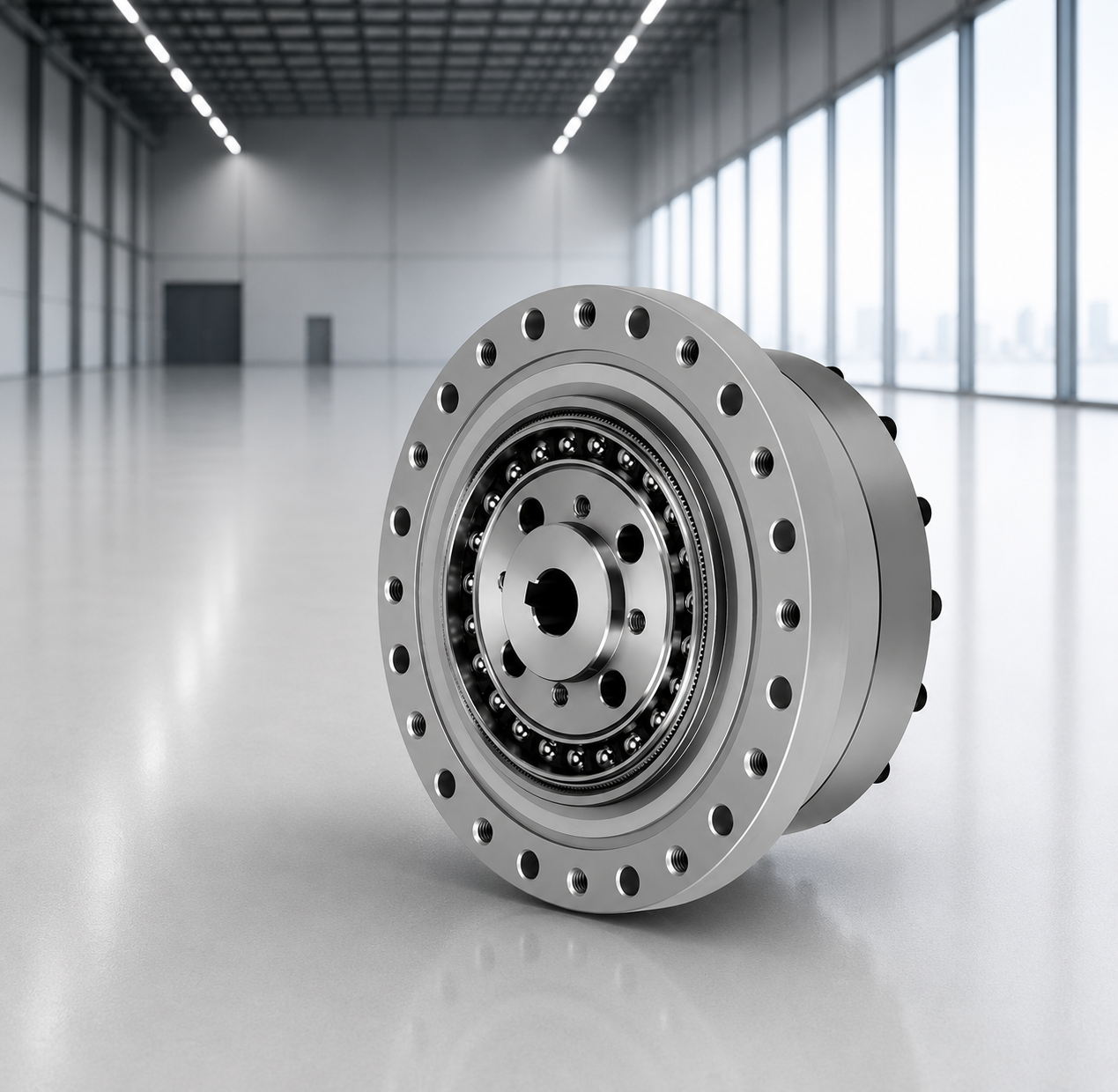

ZLCS-Series ZLCS-Series

Cup Standard Harmonic Reducer

The ZLCS-Series (Cup Standard) is a high-precision strain wave gear reducer featuring a standard cup-type flexspline design. Zero-backlash performance across sizes 14 to 45 with rated torque from 3.8 to 286 Nm.

Torque(Nm) 286 Nm
Ratios Upto 1:160
Backlash(Arc Min) 0.3
Efficiency(%) <1
Protection IP40

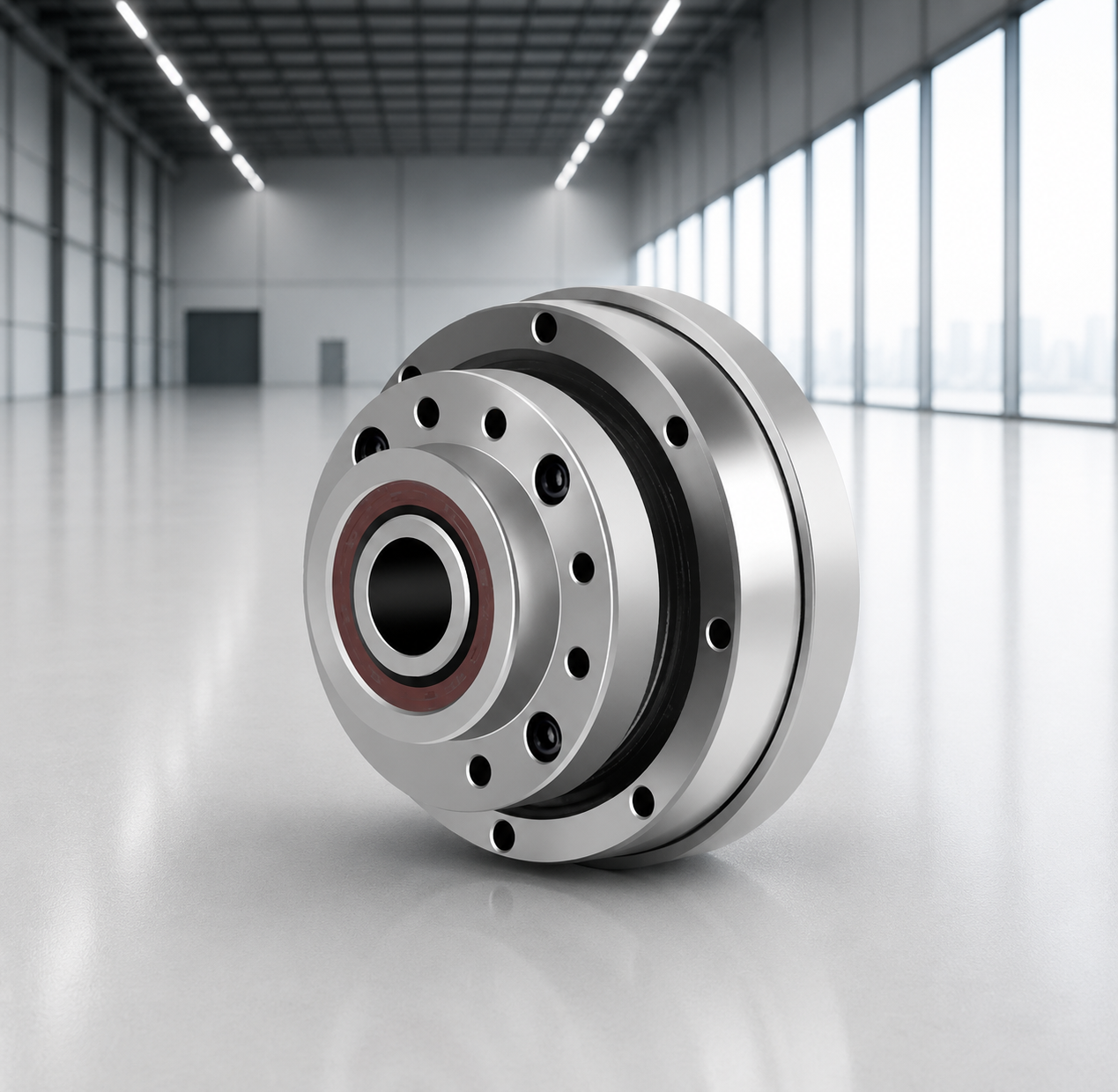

ZLHS-Series ZLHS-Series

Hat Standard Harmonic Reducer

The ZLHS-Series (Hat Standard) is a high-precision strain wave gear reducer featuring a hat-type flexspline design. Available in sizes 14 to 45 with four input variants (C-III, C-IV, TC-II, TC-III).

Torque(Nm) 286 Nm
Ratios Up to 160:1
Backlash(Arc Min) 0.3
Efficiency <1
Protection IP40
