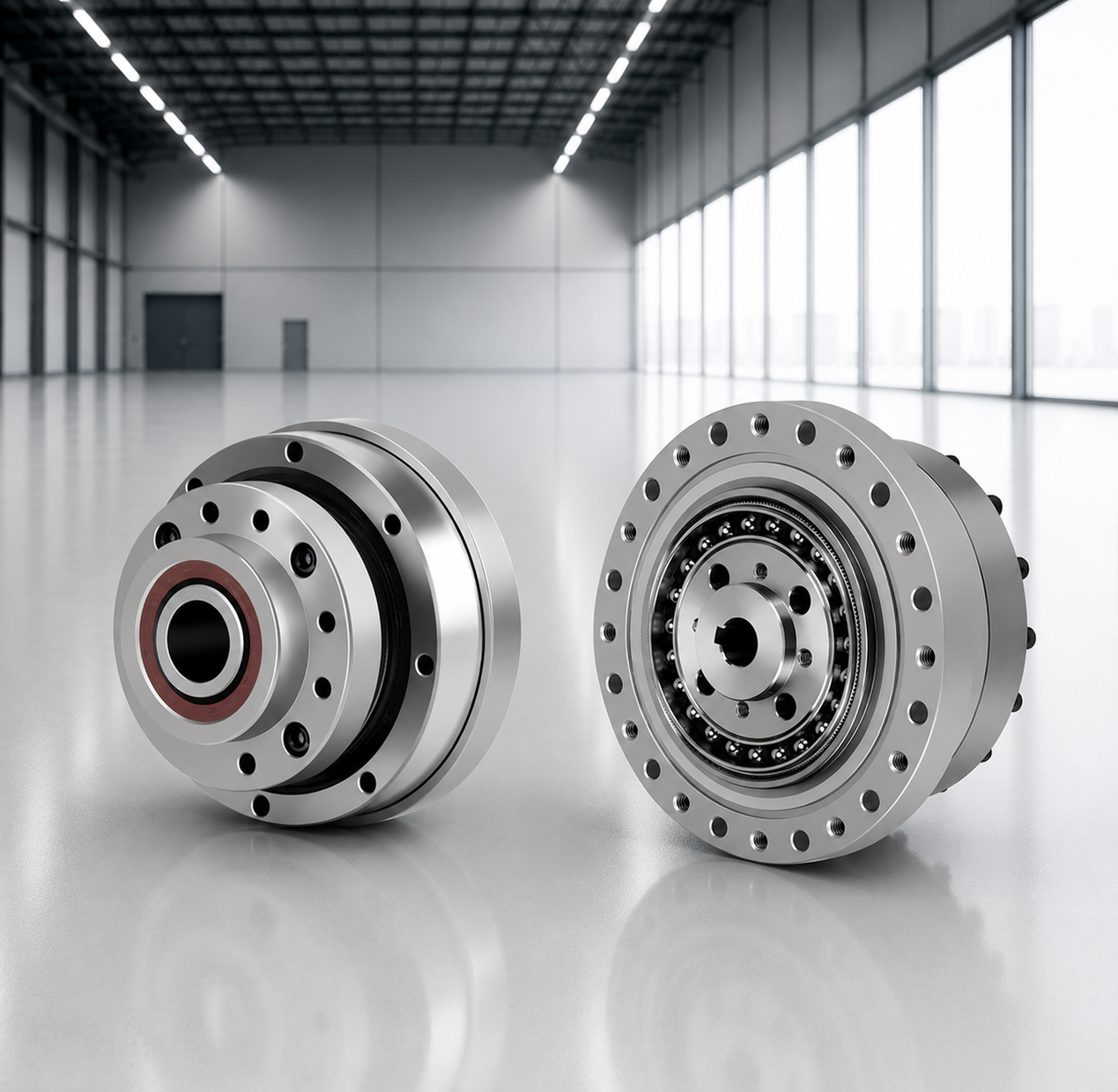

Tornex ZLCS-Series Cup Standard Harmonic Reducer
The ZLCS-Series (Cup Standard) is a high-precision strain wave gear reducer featuring a standard cup-type flexspline design. Engineered for zero-backlash performance across sizes 14 to 45, it delivers rated torque from 3.8 Nm to 286 Nm with reduction ratios of 30:1 to 160:1 in a single stage. The cup-style output offers a compact, rigid package ideal for robotics, semiconductor equipment, and precision automation applications.
Torque(Nm)
286
Ratios
Up to 1:160
Backlash(Arc Min)
0.3
Efficiency(%)
<1
Protection
IP40
| Symbol | Description | Size 14 | Size 17 | Size 20 | Size 25 | Size 32 | Size 40 | Size 45 |
|---|---|---|---|---|---|---|---|---|
| ØA | Housing outer Ø (mm) | 56 | 63 | 86 | 86 | 127 | 148 | 148 |
| B* | Total length (mm) | 45 | 52 | 52 | 52 | 72.5 | 79.5 | 73 |
| C | Flange diameter (mm) | 37 | 46 | 46 | 46 | 66.5 | 74 | 34 |
| D* | Pilot diameter (mm) | 80 | 60 | 60 | 60 | 60 | 5.5 | 70 |
| E | Step height (mm) | 29 | 36 | 36 | 36 | 50.5 | 58 | 27 |
| F | Step height (mm) | 8 | 10 | 10 | 10 | 16 | 16 | 7 |
| G | Gap (mm) | 2 | 3 | 3 | 3 | 4 | 4 | 2 |
| H | Height (mm) | 4 | 5 | 5 | 5 | 5 | 6 | 3.5 |
| I | Chamfer (mm) | 16.5 | 18.5 | 18.5 | 18.5 | 24 | 27 | 16.5 |
| ØO h7 | Input shaft Ø (mm) | 10 | 10 | 20 | 20 | 32 | 32 | 11 |
| ØP | Output flange Ø (mm) | 7 | 7 | 15 | 15 | 24 | 25 | 8 |
| ØU H7 | Output bore Ø (mm) | 48 | 48 | 67 | 67 | 110 | 124 | 38 |
| W Js9 | Keyway width (mm) | 6 | 6 | 8 | 8 | 8 | 8 | 6 |
Dimensions in mm. Key dimensions shown — consult full engineering drawing for complete specs. Sizes 14 and 17 feature keyless input shafts. All tolerances per ISO standard.
Cup-Type Flexspline Design
The ZLCS series features a standard cup-shaped flexspline that delivers exceptional torsional rigidity and zero-backlash performance. The elliptical wave generator deforms the flexspline to engage with the circular spline, achieving smooth, silent operation with high torque capacity.
Wide Reduction Range
Available in reduction ratios from 30:1 to 160:1 across 7 frame sizes (14 to 45), the ZLCS series provides design flexibility for a broad range of precision motion applications — from compact robot joints to heavy-duty positioning systems.
Rigid Cross-Roller Bearing
Integrated cross-roller bearing (C type) provides high moment stiffness and axial load capacity, making the ZLCS series ideal for direct output flange mounting. Combined with lifetime grease lubrication for maintenance-free operation up to 15,000 hours.
